Why Outdoor Security Camera Installation Is Worth Getting Right
Outdoor security camera installation is one of the most effective steps you can take to protect your home or business from break-ins, theft, and vandalism.
Here’s a quick overview of how to install outdoor security cameras:
- Plan your coverage – Identify entry points, driveways, and blind spots
- Choose your camera type – Wired (PoE), wireless (battery), or plug-in
- Pick the right locations – Mount cameras 8 to 10 feet high, angled 15 to 30 degrees downward
- Gather your tools – Power drill, mounting hardware, silicone sealant, and cable clips
- Install and secure – Drill pilot holes, attach mounts, run cables, and weatherproof all connections
- Connect and configure – Link to Wi-Fi or NVR, set motion zones, and test all features
The numbers make a strong case for taking this seriously. Research from Rutgers University confirmed that security cameras deter crime. And with 34% of burglars entering through the front door, where you place your cameras matters just as much as having them at all.
But a camera pointed the wrong way — or mounted too low, or left exposed to the elements — gives you a false sense of security. Getting the installation right is what makes the difference.
This guide walks you through everything: placement strategy, tools, weatherproofing, legal rules, and when it makes sense to bring in a professional.
Planning Your Outdoor Security Camera Installation
Before we start drilling holes into your siding, we need a solid game plan. Jumping into an outdoor security camera installation without a strategy is a recipe for blind spots and dead batteries. We need to decide how your cameras will get power and how they’ll talk to your recording system.
First, let’s look at your power options. This is usually the biggest fork in the road for Michigan homeowners.
| Feature | Wired (PoE) | Wireless (Battery) | Plug-in (AC Power) |
|---|---|---|---|
| Power Source | Ethernet Cable | Rechargeable Battery | Existing Outlet |
| Reliability | Highest (No signal drops) | High (Depends on charge) | High (Depends on power) |
| Installation | Complex (Requires drilling) | Easiest (Screw and go) | Moderate (Needs nearby outlet) |
| Maintenance | Zero | Periodic charging/swapping | Zero |
| Best For | New builds/Major renos | Hard-to-reach areas | Near eaves with outlets |
Beyond power, you need to consider the “eyes” of the camera. A good field of view (FOV) is essential. We recommend a FOV of at least 120 degrees, though 180 degrees is optimal for wide areas like backyards or long driveways. When it comes to resolution, 1080p HD is the baseline, but 4K is becoming the gold standard for capturing license plates or facial details from a distance.
Don’t forget about motion detection zones. Modern cameras allow us to “draw” boxes on the screen so the camera ignores the swaying maple tree in your front yard but alerts you the second someone steps onto your porch. For more details on the hardware itself, check out our comprehensive guide to security camera options.

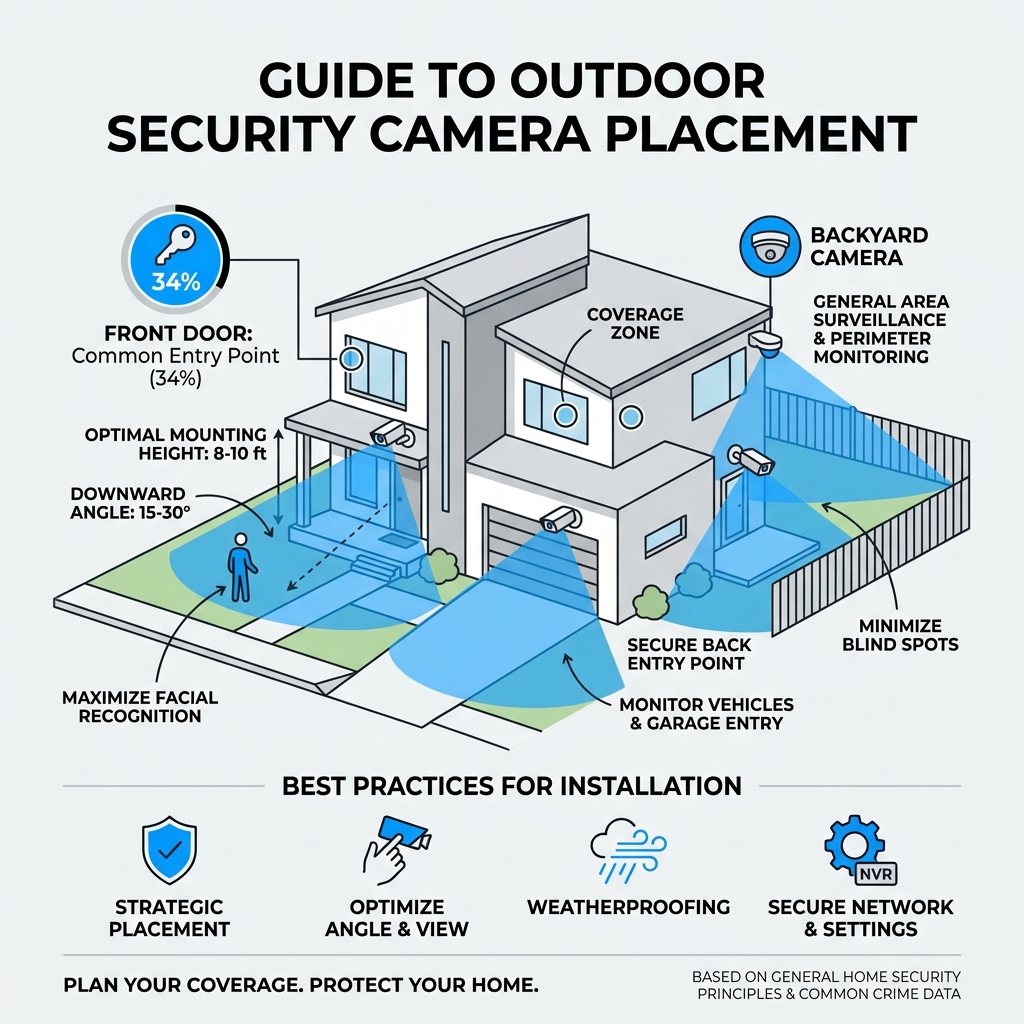

Strategic Placement for Outdoor Security Camera Installation
Where you put the camera is just as important as the camera itself. We always start with the “Big Three”: the front door, the back door, and the garage/driveway. Statistics show that 34 percent of burglars use the front door to enter homes unlawfully, making it the most critical location to survey.
For the best results, we follow the “8-10 rule.” Mount your cameras 8 to 10 feet off the ground. This height is high enough to prevent a tall intruder from reaching up and smashing or covering the lens, but low enough to capture clear facial features.
Angle is the next piece of the puzzle. We recommend a 15-30 degree downward tilt. If you point the camera straight out, you’ll get a great view of the horizon but miss the person standing right under the camera. If you mount a camera upside down, be careful—some models will actually halve their motion sensitivity from 30 feet down to 15 feet when flipped. For more on making your home a hard target, you can read this scientific research on burglar-resistant home features.
Connectivity and Network Requirements
A camera is only as good as its connection. Most residential outdoor cameras operate on 2.4GHz Wi-Fi because it has a longer range and penetrates walls better than 5GHz. However, the exterior of your home—especially if it’s brick, stone, or has heavy insulation—can act like a shield, blocking your signal.
We recommend a minimum upload speed of 2Mbps at each camera location. You can test this by standing where you want to mount the camera and running a speed test on your phone. If the signal is weak, you might need a Wi-Fi extender or, better yet, a Smart Gateway. A gateway creates a dedicated, secure network just for your cameras, ensuring they don’t fight with your Netflix streaming for bandwidth.
For those who want maximum security, an NVR (Network Video Recorder) is the way to go. Unlike cloud storage, which can fail if the internet goes down, an NVR records locally 24/7, providing a physical backup of everything that happens on your property.
Essential Tools and Weatherproofing Requirements
Ready to get your hands dirty? To handle an outdoor security camera installation like a pro, you’ll need the right gear. Don’t try to wing it with a kitchen screwdriver.
Your Installation Toolkit:
- Power drill with a 7/64″ bit (for pilot holes) or a 3/16″ bit (for masonry anchors)
- Sturdy ladder (safety first!)
- Silicone sealant (outdoor-rated)
- Screwdrivers (Phillips and flathead)
- Outdoor-rated cable clips or conduit
- Smartphone with the camera app pre-installed
When buying cameras for the Michigan climate, pay close attention to IP ratings. An IP (Ingress Protection) rating tells you how well the camera handles dust and water. We suggest a minimum of IP65, which can handle rain and snow. If the camera is going to be completely exposed to the elements without any cover, look for IP66 or IP67. You can dive deeper into the technicalities with this scientific research on international IP ratings.
Also, check the temperature thresholds. Most quality residential cameras are rated for -40°F to 140°F, which is perfect for our freezing winters and humid summers. Some budget cameras might stop working at -4°F, which won’t cut it during a January polar vortex in Oakland County.
Protecting Hardware from the Elements
Even a weatherproof camera appreciates a little help. Whenever possible, mount your cameras under eaves or soffits. This “shading” protects the lens from direct rain streaks and prevents sun glare from washing out your footage during the day.
One “pro” secret we always use is the drip loop. If you are running a wire into your house, don’t run it straight into the hole. Instead, let the wire hang down in a small “U” shape before it enters the wall. This way, rainwater runs to the bottom of the loop and drips off, rather than following the wire directly into your home.
Secure your external cables every 12-18 inches using outdoor-rated clips. If you leave wires dangling, the wind will eventually pull them loose, or worse, a squirrel might decide they look like a snack. Use corrosion-resistant screws to ensure your mounts don’t rust and leave ugly streaks down your siding over time.
Step-by-Step Guide to Mounting and Connectivity
Now it’s time for the main event. Follow these steps to ensure a secure, professional-looking install.
- Map it out: Walk around your property and hold the camera in place. Check the view on your phone app to make sure you aren’t staring at a gutter or a neighbor’s window.
- Use the template: Most cameras come with a paper mounting template. Tape it to the wall so you know exactly where to drill.
- Drill pilot holes: For wood or vinyl, a 7/64″ bit works great. If you’re drilling into brick or stucco in places like Birmingham or Royal Oak, you’ll need a masonry bit and wall anchors to keep the screws from pulling out.
- The “Downward Angle” trick: When drilling through a wall for cables, drill at a slight downward angle from the inside to the outside. This prevents water from being able to “climb” the hole into your house.
- Mount the bracket: Screw the mounting plate into place. If it’s a magnetic mount, ensure it’s tightened down so the camera doesn’t “droop” over time.
- Seal the deal: Once the wires are through, fill the hole with outdoor-rated silicone sealant. This keeps out moisture and prevents bugs from finding a new home in your walls.
For a deeper look at how these cameras fit into a total home protection plan, see our residential security systems page.
Final Testing and System Calibration
Once the camera is physically mounted, the work isn’t quite done. You need to calibrate the software.
First, check the night vision. Wait until dark and look at the feed. Are the infrared (IR) lights reflecting off a nearby wall? If so, you’ll see a bright white blur and nothing else. Adjust the angle slightly to move the wall out of the frame.
Next, test the two-way audio and the siren. Have a family member stand near the camera while you talk through the app. Is it clear? Finally, adjust your motion sensitivity. You want to be alerted when a person walks up your driveway, but you don’t want your phone blowing up every time a stray cat wanders by. Most systems allow you to set “Human Detection” so you only get the alerts that matter.
Legal Considerations for Outdoor Security Camera Installation
In Michigan, you generally have the right to install security cameras on your own property. However, there are “reasonable expectations of privacy” that you must respect. You can record your own driveway, front porch, and yard because these are considered public-facing areas.
However, you cannot point your cameras into areas where people expect privacy. This includes your neighbor’s bedrooms, bathrooms, or fenced-in backyards where they might be sunbathing or relaxing. If your camera captures a sliver of the neighbor’s front lawn while monitoring your own driveway, that is usually fine, but it shouldn’t be the primary focus.
Audio recording is a trickier legal area. Michigan is a “one-party consent” state for conversations, but recording audio in a public space where people have an expectation of privacy can lead to legal headaches. Many pros recommend disabling audio recording unless it’s specifically for a doorbell camera where interaction is expected. For a broader look at the rules, see this scientific research on 50-state recording laws.
Privacy Laws and Outdoor Security Camera Installation
When performing an outdoor security camera installation, be a good neighbor. If a neighbor sees a camera pointed directly at their patio, it’s going to cause friction. Transparency is key—sometimes just showing a neighbor the field of view on your phone to prove you aren’t spying on them can settle any disputes.
In some jurisdictions, like New York, laws are becoming even stricter regarding filming neighbors. While Michigan law is currently more flexible, it’s always wise to stay informed on privacy and filming laws. If your camera does catch a crime, the footage is only useful if it was obtained legally. You can learn more about how surveillance footage works in legal cases.
Professional vs. DIY: When to Call the Experts
Can you install a battery-powered doorbell camera yourself? Absolutely. But for a comprehensive, whole-home security grid, things get complicated quickly.
At SmartMait, we specialize in taking the “work” out of home security. If you are looking for a system that doesn’t just record video but actually integrates with your entire home, we are here to help. We use Z-Wave technology to create a seamless ecosystem where your cameras, lights, locks, and alarms all talk to each other. Imagine your outdoor lights automatically turning on the moment a camera detects a person in the driveway—that’s the power of professional integration.
We handle the difficult stuff: climbing the tall ladders, drilling through tough masonry, routing hidden wires through attics, and ensuring everything is up to local Michigan building codes. We serve homeowners across Oakland, Macomb, and Wayne Counties, ensuring that every camera is positioned for maximum coverage and zero blind spots. To see the high-quality equipment we use, check out the brands we carry.
Frequently Asked Questions
How many outdoor cameras do I need for full protection?
For a standard single-family home, we usually recommend 3 to 5 cameras. One for the front door (doorbell cam), one for the driveway/garage, one for the back door, and potentially one or two for the sides of the house if you have large windows or expensive equipment (like an AC unit or generator) located there.
Can I power outdoor cameras without an existing exterior outlet?
Yes! You have three main options:
- Battery-powered: These are easy to install but require charging every few months.
- Solar-powered: A small solar panel can keep a battery-powered camera topped off indefinitely.
- PoE (Power over Ethernet): This is our favorite. A single thin cable provides both power and internet, but it does require running the wire back to a central hub inside your home.
Do outdoor security cameras work without a Wi-Fi connection?
Some do! Wired NVR systems record directly to a hard drive and don’t need the internet to function. However, you will lose the ability to view your “live feed” on your phone or get instant alerts if the system isn’t connected to a network.
Conclusion
A successful outdoor security camera installation is more than just sticking a piece of tech on a wall. It requires strategic planning, the right tools, and a commitment to maintenance. By following the 8-10 foot height rule, ensuring your Wi-Fi signal is strong, and weatherproofing every connection, you’re creating a formidable deterrent that keeps your family safe.
Whether you’re in Clarkston, Troy, or West Bloomfield, protecting your property is a top priority. If the thought of ladders and drill bits feels a bit overwhelming, or if you want a system that integrates perfectly with your smart home, we’re ready to help.
Ready to secure your home? Visit our Home page to learn more about how we can build the perfect security solution for you.
