Everything You Need to Know About Your Access Control Controller
Everything You Need to Know About Your Access Control Controller
What Controls Who Gets Through Your Door?
An access control controller is the hardware brain behind any modern door security system. It decides who gets in, when, and how — processing credentials, managing locks, and logging every entry and exit event.
If you’re trying to quickly understand your options, here’s a fast breakdown:
| Controller Type | Best For | User Capacity | Connectivity |
|---|---|---|---|
| Standalone | Single doors, small sites | Up to 1,000 users | None (local only) |
| Networked Panel | Multi-door, enterprise | Up to 50,000+ users | LAN/WAN |
| IP-Based (PoE) | Flexible, scalable installs | Varies by model | Ethernet/TCP-IP |
| Cloud-Managed | Remote sites, SMBs | 50,000+ cardholders | Internet |
Whether you’re securing a home office, a small business, or a full commercial property, the controller you choose shapes everything — from how many doors you can manage to whether your system works during a power cut.
The difference between a frustrating setup and a seamless one often comes down to picking the right controller before you buy anything else.
Modern controllers range from simple RFID keypads (starting around $135) to enterprise-grade panels supporting 300,000 access levels with AES-256 encryption and cloud management. The gap between those two is enormous — in cost, capability, and complexity.
This guide breaks it all down so you can make a confident, informed choice.
What is an Access Control Controller?
Think of the access control controller as the “Hardware Brain” of your security perimeter. While the card reader sits outside the door and the electronic lock holds the door shut, the controller is the hidden intelligence that makes the executive decisions.
Primary Function and User Authentication
When you tap a badge or use a mobile credential, the reader sends a raw data string to the controller. The controller then checks its internal database to see if that specific user has permission to enter that specific door at that specific time. This process of user authentication happens in milliseconds. If the “math” adds up, the controller sends an electrical signal to the door strike or maglock to release.
Signal Processing and Lock Management
Beyond just saying “yes” or “no,” the controller manages the physical state of the door. It monitors “Door Position Switches” (DPS) to know if a door is being propped open or was forced. It also handles “Request-to-Exit” (REX) sensors, ensuring that when someone leaves the building from the inside, the alarm doesn’t trigger.
The Access Control Ecosystem
To understand how the controller fits in, we look at the ecosystem in four parts:
- The Credential: Your card, fob, or smartphone.
- The Reader: The device that “sees” the credential.
- The Controller: The decision-maker (the brain).
- The Software: Where we program the schedules and users.
Comparing Standalone, Networked, and IP-Based Hardware
Choosing the right architecture is the most critical step in securing your Michigan facility, whether you are in Troy, Royal Oak, or Farmington Hills.
Standalone Units
Standalone controllers are compact, all-in-one devices. These are often found in small retail shops or residential storage areas.
- Capacity: Typically support up to 1,000 users.
- Functionality: Usually programmed directly at the device using a “Master Code” or a programming card.
- Pros: Affordable (often $135–$300) and easy to install.
- Cons: No event logging (you can’t see who entered at 2 AM) and no remote management. If you want to delete a user, you have to physically go to the door.
Networked Panels

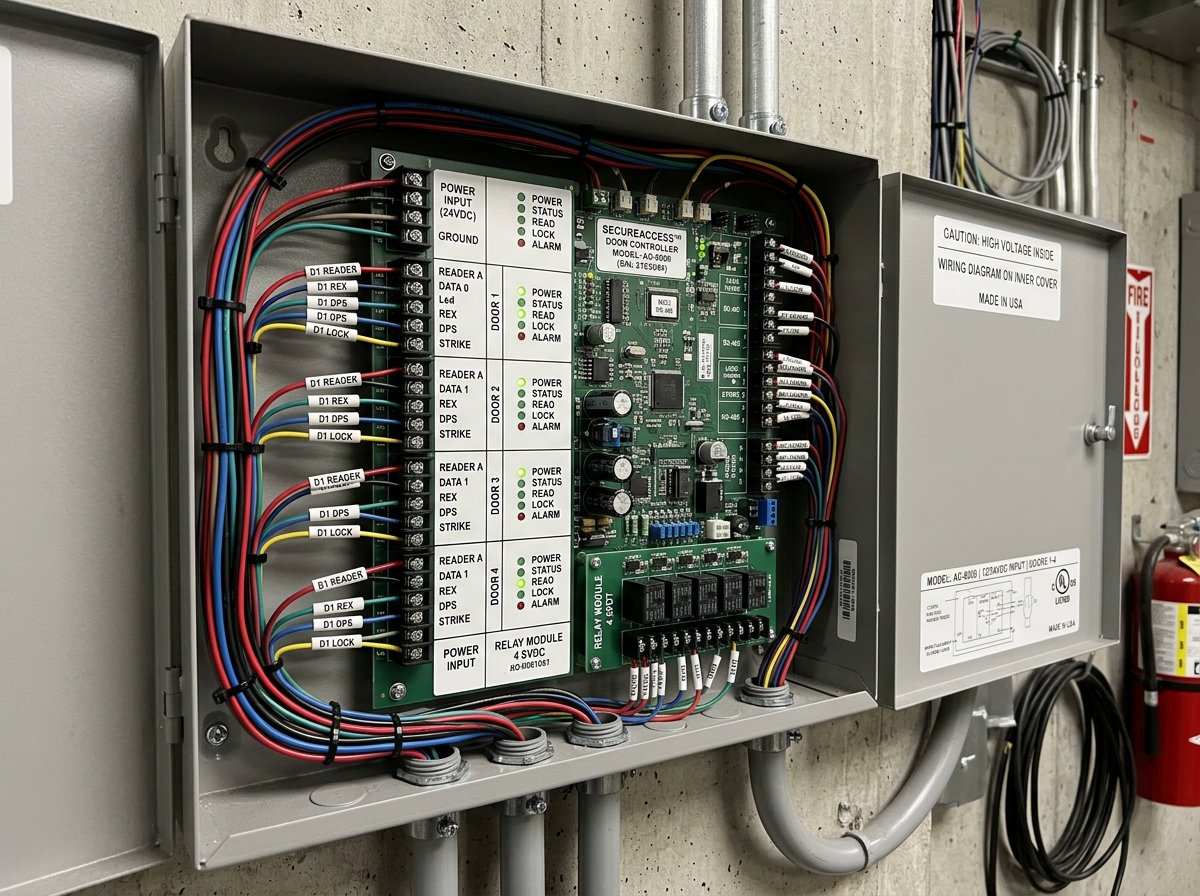

Traditional networked panels are the workhorses of the industry. These are centralized boards often mounted in a secure IT closet.
- Capacity: Can manage 50,000+ users and hundreds of doors across a campus.
- Functionality: They communicate via RS-485 or Ethernet to a central server.
- Pros: Massive scalability and extremely robust. They can handle complex “Global Anti-Passback” (preventing someone from passing their card back to a friend).
IP-Based Systems and PoE Power
The modern standard is the IP-based access control controller. These devices sit right at the door (“at the edge”) and connect directly to your existing network via an Ethernet cable.
- PoE (Power over Ethernet): This is a game-changer. Instead of hiring an electrician to run high-voltage power to every door, the controller draws its power—and the power for the lock—directly from the network switch.
- Connectivity: Uses standard TCP/IP protocols, making them easy to manage from any computer on the network.
- Efficiency: SDC and Axis models highlight how tapping into the nearest Ethernet connection can save thousands in labor and cabling costs.
Key Features and Communication Protocols
When we look under the hood of an access control controller, the technical specs determine how secure and flexible the system will be over the next ten years.
Wiegand vs. OSDP
For decades, Wiegand was the only game in town. It’s a simple protocol used between the reader and the controller. However, Wiegand is unencrypted—a sophisticated hacker could potentially “sniff” the data. It is also limited to about 500 feet of distance.
Modern systems increasingly use OSDP (Open Supervised Device Protocol).
- Security: OSDP supports high-end encryption (AES-128).
- Range: It can work at distances up to 4,000 feet using an RS485 interface.
- Bi-directional: The controller can “talk back” to the reader, allowing for LED light changes or text displays on the reader screen.
Capacity and Buffering
A high-quality access control controller like the Acre Smart Controller or the HID Aero series is built for “Offline Operation.”
- User Capacity: Enterprise models can store 50,000 cardholders locally.
- Event Buffering: If your building’s internet goes down, the controller doesn’t stop working. It stores events (like “John Doe entered Front Door”) in a local buffer—sometimes up to 32,000 events—and uploads them to the software once the connection is restored.
Selecting the Right Access Control Controller for Your Needs
Selecting hardware isn’t just about the price tag; it’s about the “future-proofing” of your Macomb or Oakland County property.
Door Capacity and Scalability
Controllers are typically sold by “door count.” You will find 1-door, 2-door, 4-door, and 8-door configurations.
- Pro Tip: If you have a 3-door office, buy a 4-door controller. It’s much cheaper to have an extra port ready than to buy a whole new controller when you decide to secure the back supply room next year.
Compliance and Security Standards
In high-security environments, look for these certifications:
- UL 294: The standard for Access Control System Units.
- FIPS Compliance: Necessary for government or high-security federal contracts (like HID pivCLASS modules).
- Encryption: Ensure the controller uses AES-256 encryption and TPM 2.0 (Trusted Platform Module) to protect the digital keys stored on the hardware.
SmartMait Z-Wave Integration
At SmartMait, we specialize in making these complex systems talk to each other. While many commercial controllers are “islands,” our USP is seamless integration via Z-Wave. This allows your access control controller to trigger your “Mood Lighting,” adjust the thermostat when the first employee arrives, or even sync with your security cameras to bookmark video clips every time a specific door is opened.
Frequently Asked Questions
What is the difference between Wiegand and OSDP?
Wiegand is a legacy standard that is easy to install but lacks security; it is limited to a 500ft wiring run and has no encryption. OSDP is the modern, secure alternative. It allows for bi-directional communication (the controller knows if the reader is tampered with), supports encryption, and works at distances up to 4,000ft. If you are installing a new system in Bloomfield Hills or West Bloomfield today, we almost always recommend OSDP.
How does an access control controller handle network outages?
The best controllers are “Intelligent Edge” devices. They download the entire user database and all access rules (who can go where and when) into their local memory. If the network or cloud connection drops, the door still opens for authorized users. The controller saves all entry logs in an internal “event buffer” and syncs that data back to the main server once the network is stable.
Can I manage an access control controller through the cloud?
Yes! Cloud-managed controllers are becoming the standard for growing businesses. They allow you to add or delete users, change schedules, and even trigger a “Lockdown” from a smartphone app while you’re at home in Birmingham or on vacation. This “Cloud-native flexibility” removes the need for an expensive on-site server and simplifies multi-site management.
Conclusion
The world of access control is moving fast. We are seeing a massive shift toward AI integration—where controllers can recognize tailgating (two people entering on one badge) or integrate with biometric facial recognition for “touchless” entry.
As buildings in Michigan become smarter, the access control controller is no longer just a lock-manager; it is the cornerstone of building automation. By choosing a system that supports open architecture and modern protocols like OSDP and PoE, you ensure your investment will last for decades.
At SmartMait, we help homeowners and business owners across Southeast Michigan—from Clarkston to Livonia—design systems that are both incredibly secure and effortlessly simple to use. Whether you need a single-door solution for a home office or an enterprise-grade system for a warehouse in Warren, we have the expertise to integrate it all into a single, cohesive smart platform.
