How to Install a Door Access Control System Without Breaking Things
What You Need to Know Before Installing a Door Access Control System
Door access control system installation is the process of setting up hardware and software that controls who can enter a building, when they can enter, and how their identity is verified.
Here’s what the process involves at a glance:
- Plan – Identify which doors need securing, choose your credentials (cards, PINs, mobile, biometrics), and select a cloud-based or server-based system
- Choose hardware – Pick electric locks, door readers, controllers, and a power supply that fit your doors and security needs
- Wire and power – Run low-voltage cabling from readers and locks back to the controller; power via PoE or 12V/24VDC
- Meet compliance – Confirm your setup meets fire codes, ADA requirements, and any industry regulations like HIPAA
- Configure software – Set up user permissions, access schedules, and audit trails in the management platform
- Test and onboard – Verify every door, credential, and fail-safe trigger works before adding users
Most people don’t realize how much goes into this until they’re halfway through a project. Installing an access control system isn’t just swapping out a lock. It involves mechanical hardware, low-voltage wiring, network configuration, and regulatory compliance — all working together.
The good news? If you’ve ever set up an IP camera or a network switch, you already understand the basic logic. Modern systems are designed to be installed one door at a time, which makes even large multi-door projects manageable when you approach them methodically.
Costs typically run $1,500 to $5,000+ per door, and a single door takes two to five hours to install, depending on whether you’re running new wire or going wireless.
This guide walks you through every step — from planning and hardware selection to wiring, compliance, and software setup — so you can make smart decisions whether you’re doing it yourself or hiring a pro.

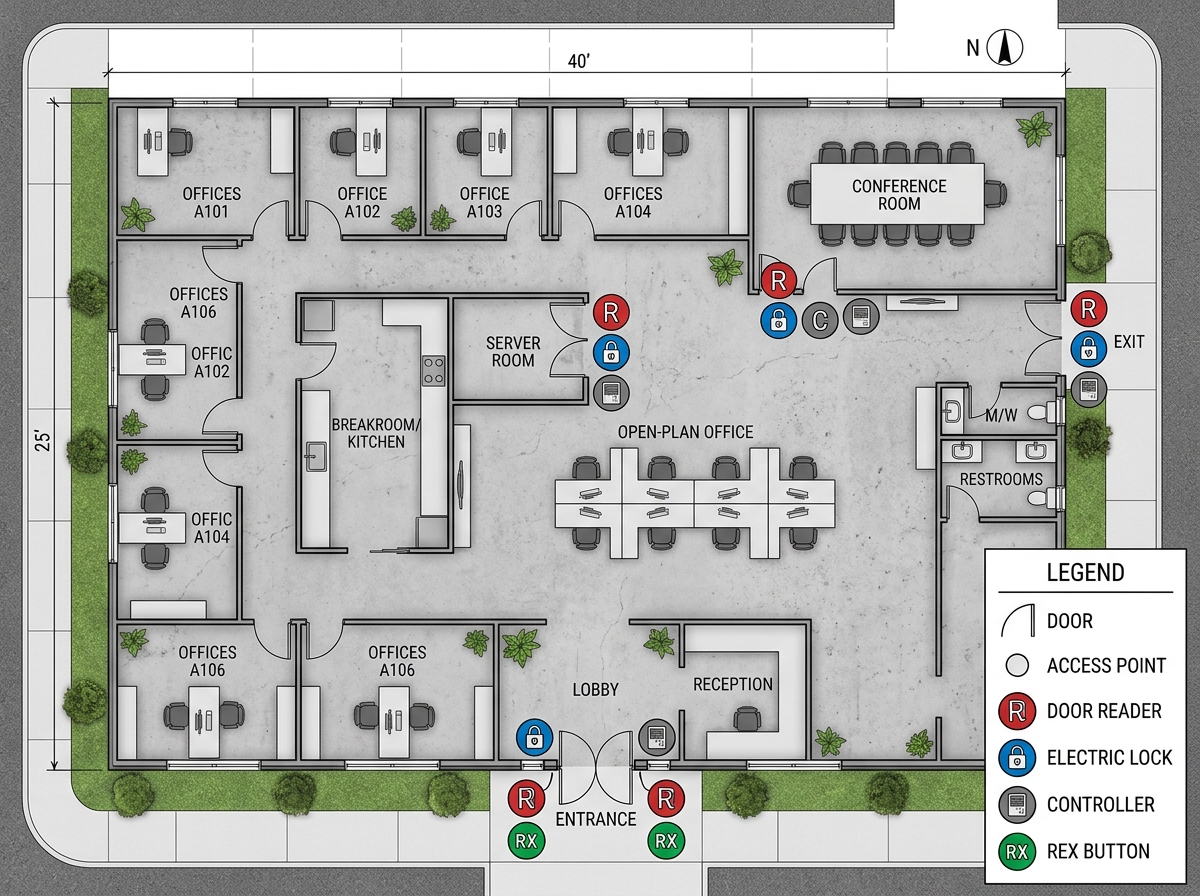

Planning Your Door Access Control System Installation
Before you pick up a drill or strip a single wire, you need a blueprint. A failed door access control system installation usually starts with poor planning. We recommend beginning with a detailed walkthrough of your property—whether it’s a residence in Bloomfield Hills or a commercial space in Troy.

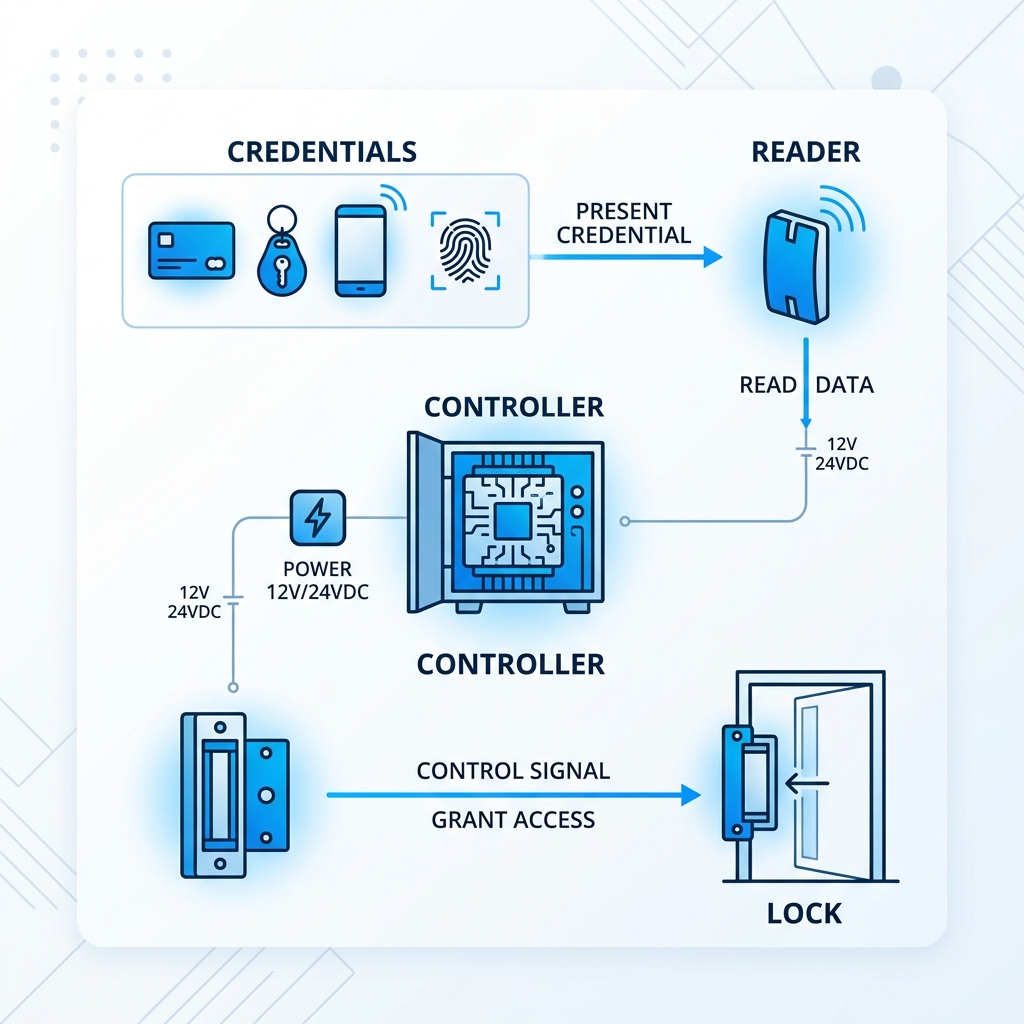

System Components
A standard system is a team effort. You’ll need:
- Master Controllers: The “brain” of the operation, usually tucked away in an IT closet or basement.
- Door Readers: The “ears” that listen for credentials outside the door.
- Request-to-Exit (REX) Buttons: Sensors or buttons that allow people to leave without needing a badge.
- Door Sensors: Magnetic contacts that tell the system if a door is actually closed or propped open.
Credential Types
How do you want to prove you belong there?
- Mobile NFC & Bluetooth: Using your smartphone is the modern gold standard. It’s convenient and harder to “lose” than a piece of plastic.
- Biometric Scanners: Fingerprints or facial recognition offer high security but require more precise installation.
- Key Cards & Fobs: The classic choice. Proximity cards (125 kHz) are common, but Smart Cards (13.56 MHz) offer better encryption.
Cloud-Based vs. Server-Based Systems
This is a fork in the road for your project.
| Feature | Cloud-Based Access Control | Server-Based (On-Premise) |
|---|---|---|
| Management | Anywhere via web browser/app | Only from a local computer |
| Maintenance | Automatic software updates | Manual IT updates required |
| Scalability | Easy to add doors or sites | Limited by server capacity |
| Upfront Cost | Lower (no server to buy) | Higher (requires dedicated PC) |
| Monthly Fees | Yes (SaaS model) | Usually none or minimal |
For a deeper dive into how to map out your property’s defenses, check out this physical security guide for planning.
Choosing Hardware for Door Access Control System Installation
The lock you choose depends entirely on your door frame and how you need the door to behave during a power outage.
- Electric Strikes: These replace the standard “strike plate” in your door frame. They are popular because they allow the door to stay locked from the outside while still allowing a mechanical handle to turn for a quick exit.
- Magnetic Locks (Mag-locks): These use a powerful electromagnet to hold the door shut. They are incredibly strong (often rated for 1,200 lbs of force) but require a constant power supply to stay locked.
Fail-Safe vs. Fail-Secure This is a critical safety distinction. Fail-safe means the door unlocks when power is lost (essential for fire exits). Fail-secure means the door stays locked when power is lost (better for high-security storage). Mag-locks are inherently fail-safe, while electric strikes can often be configured as either.
Before buying, ensure you have an intact product warranty considerations from the manufacturer. Pro tip: take photos of your door frames and send them to the hardware provider to ensure compatibility before you buy.
Wiring and Powering Your Door Access Control System Installation
Wiring is where the “breaking things” part usually happens. Most modern controllers use Power over Ethernet (PoE), which allows a single network cable to provide both data and power. However, your locks will likely need a dedicated power supply.
- Voltage: Most locks run on 12VDC or 24VDC. Mixing these up can fry your hardware.
- Cabling: Use Shielded CAT6 cabling for readers to prevent interference. For the locks themselves, 18/2 or 16/2 stranded wire is standard.
- Communication: Many readers communicate with the controller via RS-485 or the older Wiegand protocol. RS-485 is preferred for longer distances (up to 300-500 feet) and better security.
- Protection: Always include a backup battery in your power supply cabinet. In Michigan, where summer storms or winter ice can knock out power in Royal Oak or Southfield, you don’t want to be locked out (or have your building wide open) because of a localized outage.
Navigating Regulations and Compliance Standards
In door access control system installation, “secure” doesn’t always mean “safe.” If you lock a door so tightly that people can’t get out during a fire, you’re looking at massive fines and, more importantly, a life-safety hazard.
Fire Code and Emergency Egress
The golden rule of access control is that egress (exiting) must be easy and unencumbered.
- NFPA 101 Life Safety Code: This standard dictates that people must be able to exit a building without specialized knowledge or keys. If you use a mag-lock, it must be tied into the fire alarm system so that it automatically releases when the alarm sounds. You can find more details on the NFPA 101 Life Safety Code compliance site.
- ADA Requirements: The Americans with Disabilities Act (ADA) requirements specify the height of readers and the force required to open a door. Generally, readers should be mounted between 34 and 48 inches from the floor.
Industry-Specific Standards
- HIPAA: If you’re securing a medical office in Rochester Hills, your system must provide audit trails to show who accessed sensitive record rooms.
- Local Permits: Cities like Warren or Livonia may require electrical or building permits for new installations. Always check with your local building department before starting.
Step-by-Step Guide to Door Access Control System Installation
Ready to get your hands dirty? Follow this sequence to ensure a smooth setup.
- Site Assessment: Confirm your wiring paths. Are you going through a drop ceiling? Boring through a solid oak door? Knowing this now saves hours later.
- Mount the Controller: Place the control panel in a secure, climate-controlled “IT closet.” Ensure it has a dedicated power outlet and a solid network connection.
- Install the Reader: Mount the reader on the wall next to the door. We suggest using a 1-Gang box for a flush, professional finish.
- Install the Lock: This is the most mechanical part of the job. Aligning an electric strike with the door latch requires precision. If it’s off by even an eighth of an inch, the door might not lock or unlock reliably.
- Run and Terminate Wires: Pull your cables from the door back to the controller. Label every wire! “Front Door Reader” and “Front Door Lock” are much better labels than “Wire A” and “Wire B.”
- The “One Door” Test: Before you wire up 12 doors across a facility in Farmington Hills, get one door working perfectly. Test the reader, the lock, and the exit button.
- Software Provisioning: Once the hardware is live, use the manufacturer’s app or web dashboard to “claim” the controller and update the firmware. For specific software steps, refer to this onboarding documentation and setup.
Software Configuration and System Integration
Hardware is the body, but software is the soul of your access control system. This is where you define the “who, when, and where.”
- Role-Based Access Control (RBAC): Instead of managing users one by one, create groups. For example, “Managers” might have 24/7 access to all doors, while “Cleaning Crew” only has access to the main lobby on Tuesday nights.
- Audit Trails: Modern systems keep a digital log of every event. If a door is forced open in a Troy warehouse at 2:00 AM, you’ll get an instant alert.
- Integrations: This is where things get exciting. You can link your access control to Security Cameras. When someone swipes a badge, the system can “bookmark” the video clip of that person entering, making it easy to verify that the person using the badge is actually the owner of that badge.
- Z-Wave and Smart Home: At SmartMait, we specialize in the seamless integration of these systems via Z-Wave. This allows your access control to talk to your lights and thermostat. Imagine: when the last person leaves and locks the door, the lights automatically turn off and the security alarm arms itself.
Troubleshooting and Common Installation Mistakes
Even the pros run into hiccups. Here’s how to avoid the most common “head-desk” moments.
Common Mistakes
- Voltage Drop: If your wire run is too long and too thin, the lock might not get enough power to engage. If a 24V lock is only receiving 18V, it will behave erratically.
- Poor Shielding: If your reader wires are run right next to high-voltage fluorescent lights, the “noise” can interfere with the data signal, causing the reader to fail.
- Misaligned Strikes: If the door has shifted in its frame (common in Michigan’s changing seasons), the latch might bind against the electric strike.
- Network Conflicts: Ensure your controller has a static IP address or a reserved DHCP lease so it doesn’t “disappear” from your network.
Troubleshooting Tips
- Check the LEDs: Almost every controller and reader has status lights. A blinking red light usually means a communication error, while a solid orange might mean it’s waiting for a network connection.
- The Multimeter is Your Friend: Always test the voltage at the lock while it’s being triggered.
- Maintenance: Physical security isn’t “set it and forget it.” Perform quarterly audits of your user list and check the physical hardware for wear. See these access control maintenance tips for a full checklist.
Frequently Asked Questions about Access Control
What is the typical cost of door access control installation?
For a professional door access control system installation in the Metro Detroit area, expect to pay between $1,500 and $5,000 per door. This includes the controller, readers, locks, cabling, and labor. Cloud-based systems will also have an ongoing monthly subscription fee (SaaS) for software access and security updates.
How long does it take to install a system on one door?
On average, it takes two to five hours per door. If the building is older (like some historic properties in Birmingham) and requires fishing wires through difficult walls, it could take longer. Software configuration for the entire system usually adds another few hours to the total project.
Can I install a door access control system myself or should I hire a pro?
While a tech-savvy DIYer can handle a single-door kit, commercial or multi-door residential systems are complex. Professional installers ensure that the system is fire-code compliant and that the wiring is hidden and secure. Furthermore, many manufacturers only honor warranties if the system was installed by a certified professional.
Conclusion
A successful door access control system installation provides more than just security—it provides peace of mind and operational efficiency. Whether you are managing a busy office in Southfield or securing your family home in Bloomfield Township, the key is to choose a system that is scalable, compliant, and integrated.
