Why the Badge Access Door System is Still King
The Door Badge Reader Is Still the Backbone of Modern Access Control
A door badge reader is an electronic device that reads credentials — like a card, fob, or smartphone — and grants or denies entry to a secured door. It’s one of the most reliable and widely adopted access control technologies in use today, trusted by more than 100,000 organizations globally.
Here’s a quick breakdown of what you need to know:
| Feature | What It Means |
|---|---|
| How it works | Reads RFID credentials and sends data to a controller for verification |
| Common credential types | Proximity cards, smart cards, key fobs, mobile phones |
| Key frequencies | 125 kHz (basic) and 13.56 MHz (high-security) |
| Main interfaces | Wiegand (traditional) and OSDP (modern, encrypted) |
| Mounting options | Mullion, single gang, wall mount |
| Who uses it | Offices, schools, healthcare facilities, multi-family buildings, small businesses |
Whether you’re a small business owner tired of managing physical keys, or a homeowner building a smarter, more secure property — badge access technology solves real problems. It lets you grant and revoke access instantly, track who enters and when, and eliminate the risk of lost or copied keys.
And despite flashy new entrants like facial recognition and PIN-only systems, the badge reader remains the go-to solution for one simple reason: it works reliably, at scale, for almost any budget.
In this guide, we’ll break down exactly how badge readers work, what types are available, and how to choose the right system for your needs.
Important door badge reader terms:
Understanding the Door Badge Reader: How It Works

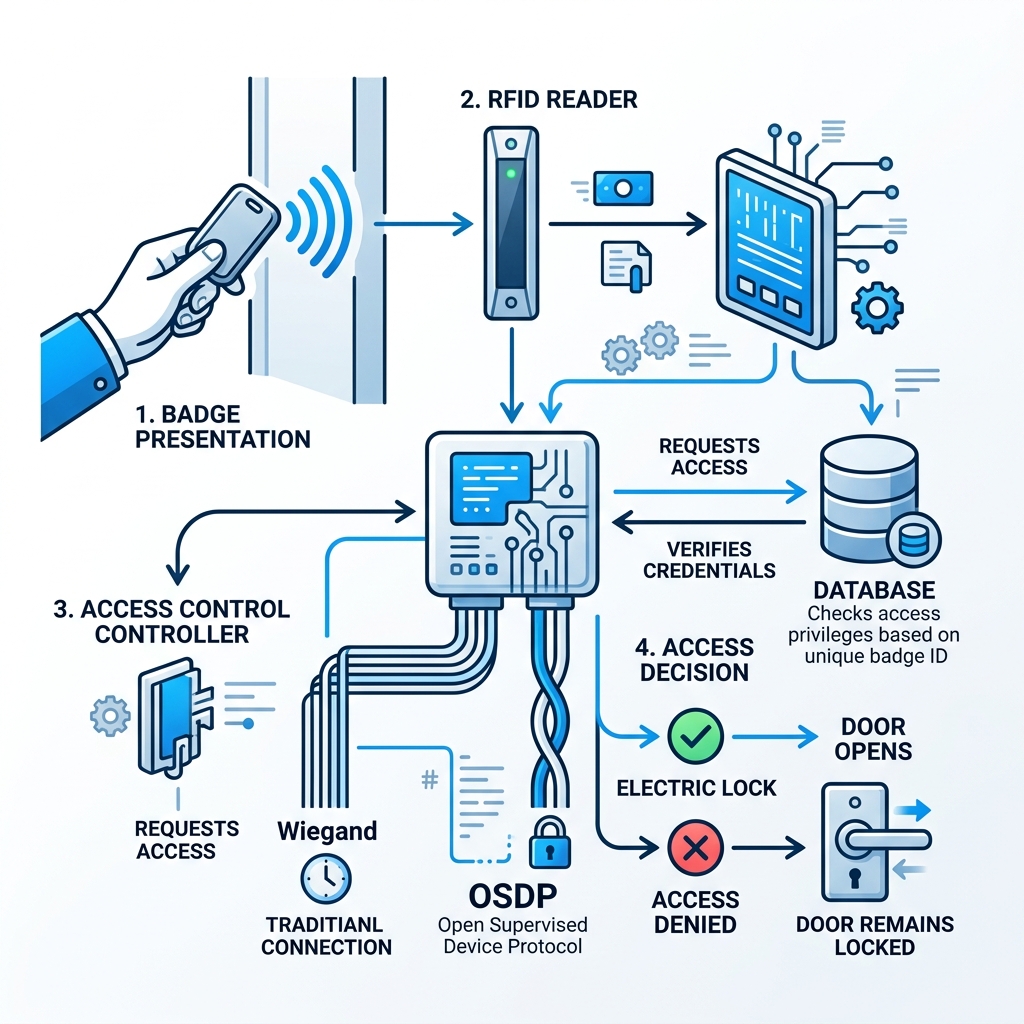

At its heart, a door badge reader is a translator. It takes the invisible data stored on a credential and turns it into a signal that your security system can understand. Most modern systems use Radio Frequency Identification (RFID) to make this happen. When you hold your badge near the reader, the reader emits an electromagnetic field that “wakes up” the chip in your card, allowing it to beam its unique ID number back to the device.
But the reader doesn’t actually decide if you’re allowed in. That job belongs to the brain of the operation: the controller. You can learn more about your access control controller to see how it manages these decisions.
The “language” used to send this data has evolved over the years. For a long time, Wiegand was the industry standard. While reliable, Wiegand is a one-way street—the reader talks, but the controller can’t talk back. This makes it vulnerable to “sniffing” or hacking. That is why we are seeing a massive shift toward OSDP (Open Supervised Device Protocol). OSDP allows for two-way, encrypted communication, meaning the system can detect if someone is tampering with the wires or trying to spoof a badge.
Proximity vs. Smart Card Technology
Not all badges are created equal. If you’ve ever wondered why some cards work from six inches away while others require a “tap,” it’s all about the frequency.
| Feature | Proximity Cards (Prox) | Smart Cards |
|---|---|---|
| Frequency | 125 kHz (Low Frequency) | 13.56 MHz (High Frequency) |
| Security Level | Basic (Easier to clone) | High (Encrypted data) |
| Read Range | Generally longer (up to 5-8 inches) | Shorter (tap or 1-2 inches) |
| Common Brands | HID Prox, EM4100 | MIFARE, DESFire, HID iCLASS |
| Data Capacity | Low (just an ID number) | High (can store biometric data/funds) |
In our experience serving businesses across Oakland and Macomb County, we find that legacy buildings often still use 125 kHz proximity technology. However, for new installations in areas like Troy or Birmingham, we almost exclusively recommend 13.56 MHz smart cards. They offer much stronger encryption, protecting your facility from modern digital “pickpockets” who use cheap devices to copy unencrypted prox cards.
Types of Door Badge Reader Systems
Choosing the right hardware depends on your specific entryway. A glass-fronted office in Royal Oak has different needs than a warehouse loading dock in Warren.
- Multi-Technology Readers: These are the “Swiss Army Knives” of access control. They can read both old 125 kHz prox cards and new 13.56 MHz smart cards. This is perfect for businesses in transition, allowing you to upgrade your security without having to throw away everyone’s old badges on day one.
- Keypad Readers: These add a second layer of security (Two-Factor Authentication). To get in, a user might need to scan their badge and enter a PIN. This prevents someone from using a stolen badge to gain entry.
- Biometric Readers: These use fingerprints or facial recognition. While high-tech, they are often paired with a door badge reader as a backup or for multi-factor setups.
- Standalone Systems: These are “all-in-one” units where the reader and the controller are in the same housing. They are great for a single door in a small shop or a home office in Farmington Hills because they don’t require a complex network. However, they usually store data locally (up to 1,000 users) and don’t offer the deep audit logs of a networked system.
- Networked Systems: These connect every reader in the building to a central “brain.” This allows you to manage everything from a single computer or smartphone, which is essential for larger organizations.
Mobile-Enabled and Bluetooth Readers
The biggest trend we’re seeing in Michigan right now is the move toward mobile credentials. Instead of carrying a plastic card, employees use an app on their smartphone.
These readers use Bluetooth Low Energy (BLE) or NFC (Near Field Communication) to talk to the phone. Some advanced models even feature “Intent Unlock” technology. Using time-of-flight sensors, the reader can measure exactly how far away you are. It can be set to unlock only when you are within two meters and perform a specific gesture, like a hand wave, preventing the door from popping open just because you walked past it in the hallway.
Benefits of a Door Badge Reader for Security
Why have over 5 million of these locks been sold? Because they solve the “Key Problem.” If an employee at a business in Livonia loses a physical key, the owner has to pay a locksmith to rekey every single lock and cut new keys for everyone. With a door badge reader, you simply click “deactivate” in the software, and that lost card becomes a useless piece of plastic.
Audit Logs and Monitoring Every time a badge is scanned, a digital footprint is created. You can see exactly who entered the server room at 2:00 AM. This level of accountability is a huge deterrent for internal theft and unauthorized access.
Tamper Detection and Encryption High-end readers are built like tanks. Many carry IP65 or IP66 weather ratings and IK07 impact ratings, making them tough enough for Michigan winters. Internally, they feature tamper switches that trigger an alarm if someone tries to pry the reader off the wall. When combined with cloud-based access control, you get real-time alerts sent straight to your phone if a security breach occurs.
Enhancing Convenience and Operational Efficiency
Beyond security, badge readers just make life easier. For property managers in West Bloomfield or Bloomfield Hills, managing tenant turnover is a breeze. You can program a new card in seconds rather than waiting for a hardware store to cut a key.
- Touchless Access: In a post-pandemic world, many of our clients prefer readers that support a “wave” or “tap” to unlock, reducing the need to touch high-traffic surfaces.
- Remote Management: Imagine being at home in Clarkston and being able to unlock the office door for a delivery driver in Southfield. That is the power of a networked badge system.
Installation and Mounting Best Practices
Where you put the reader is just as important as which reader you buy. There are three main ways we mount these devices:
- Mullion Mount: These are very narrow (often less than 2 inches wide). They are designed to fit perfectly on the metal frame (the mullion) of a glass door.
- Single Gang: This is the standard size of a light switch or wall outlet. It’s the most common choice for drywall or brick installations.
- Wall Mount: Larger readers, often those with keypads or magnetic stripe support, require a larger footprint and are mounted directly to the wall surface.
When we handle an installation in cities like Rochester or Farmington, we always look at the environment. If the reader is outside, we might add a weathershield. If it’s being mounted on a metal surface, we use spacers to ensure the metal doesn’t interfere with the RFID signal.
Integrating Readers with Existing Infrastructure
You don’t always have to start from scratch. Many modern readers are designed to be “backward compatible.” This means they can often use the existing 18 AWG wiring already in your walls.
The connection usually goes from the reader back to a central hub using RS-485 or Wiegand wiring. For those looking for the most modern setup, Power over Ethernet (PoE) allows the reader to get both its data and its power from a single network cable. To get the technical details on how these connections work, check out our mastering the connection with a controller network access guide.
Frequently Asked Questions about Door Badge Readers
What is the difference between a standalone and networked door badge reader?
A standalone reader is a “lone wolf.” It stores all user data and makes its own decisions. It’s cheaper and easier to install but harder to manage if you have many doors. A networked system connects all readers to a central controller, allowing for global changes (like an emergency lockdown) and detailed reporting across the entire facility.
How much does a door badge reader system cost?
The price varies wildly based on technology. A basic standalone kit might start around $115, while a high-end, multi-technology reader with a keypad and Bluetooth can cost between $400 and $600 per door. This doesn’t include the cost of the magnetic locks, the controller, or professional installation. For a complete commercial-grade setup, you can expect to invest anywhere from $1,500 to $3,000 per door.
Are mobile credentials more secure than physical badges?
In many ways, yes. People are much less likely to “lend” their smartphone to a coworker than their plastic badge. Furthermore, most mobile credentials require the user to unlock their phone (using FaceID or a passcode) before the “badge” will work, adding a layer of biometric security that a standard card simply doesn’t have.
Conclusion
The door badge reader remains the king of access control because it offers the perfect balance of security, durability, and ease of use. Whether you are securing a corporate office in Southfield or an apartment complex in Royal Oak, these systems provide the peace of view that traditional keys never could.
